Some Quick pics of my RCX Train

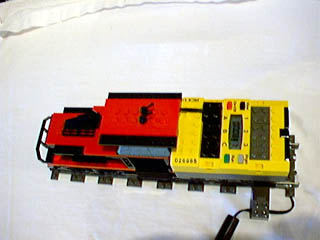

Here are some quick pics of my Lego Mindstorm powered Train.

It's mostly from a 4565 set. I want to replace the RED with YELLOW but don't have a YELLOW wagon plate.

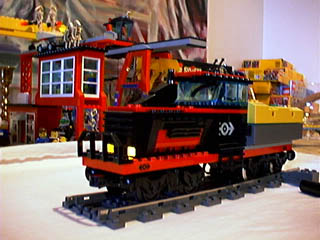

Notice the lights are on but no ones' home? GRIN. The power is on to the RCX too!

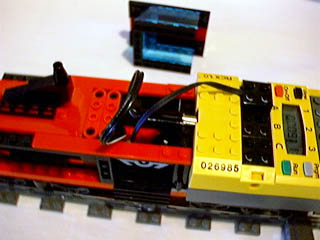

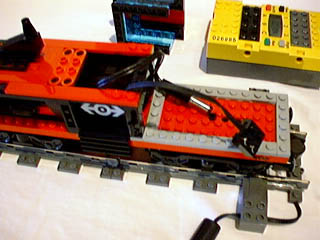

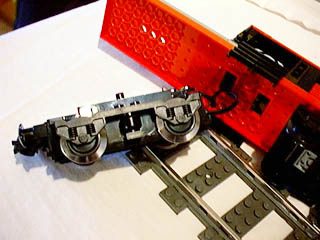

Here is my train disassembled. You can see how the RCX is powered by the track. This connector plugs onto the light brick and aux connector on the modified motor.

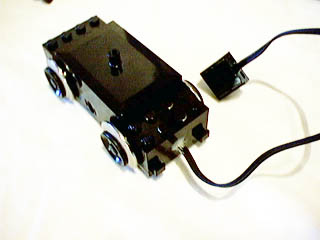

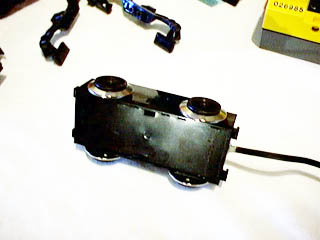

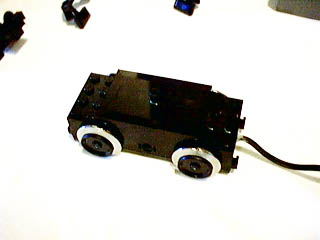

The following pics are of the motor unit alone.

Sadly, I did not take pictures of it while it was being modified. I don't wish to take it apart again due to the placement of the wire. I don't want it to move and possibly cause it to rub on the axle and cause a short.
